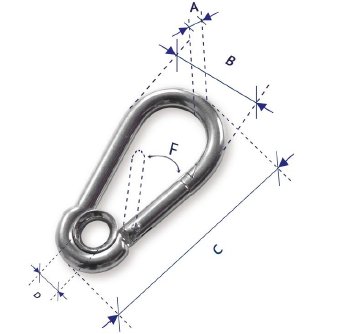

| SIZE(MM) | A(MM) | B(MM) | C(MM) | D(MM) | F(MM) | W.L.L.(LBS) |
| 4X40 | 4 | 20 | 40 | 5 | 7 | 80 |
| 5X50 | 5 | 25 | 50 | 5 | 7 | 100 |
| 6X60 | 6 | 30 | 60 | 5 | 8 | 140 |
| 7X70 | 7 | 35 | 70 | 7 | 8 | 200 |
| 8X80 | 8 | 40 | 80 | 10 | 9 | 250 |
| 9X90 | 9 | 45 | 90 | 10 | 10 | 280 |
| 10X100 | 10 | 50 | 100 | 13 | 11 | 400 |
| 11X120 | 11 | 57 | 120 | 13 | 16 | 500 |
| 12X140 | 12 | 67 | 140 | 15 | 19 | 600 |
| 13X160 | 13 | 74 | 160 | 17 | 25 | 700 |
| 14X180 | 14 | 86 | 180 | 17 | 35 | 900 |
