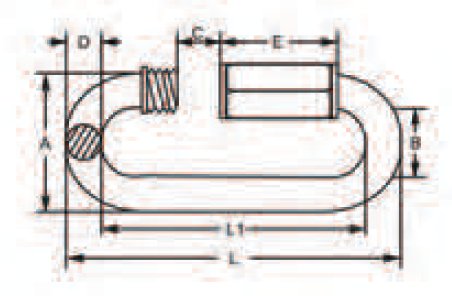

| SIZE(MM) | A(MM) | B(MM) | C(MM) | D(MM) | L(MM) | L1(MM) | E(MM) |
| 3.5 | 17 | 10 | 5 | 3.5 | 36 | 29 | 11 |
| 4 | 19.5 | 10 | 5 | 4 | 39.5 | 31.5 | 12.5 |
| 5 | 23 | 13 | 8 | 5 | 48.5 | 35.5 | 16 |
| 6 | 26.5 | 14.5 | 8 | 6 | 57 | 45 | 19 |
| 7 | 30 | 16 | 10 | 7 | 66 | 52 | 21.5 |
| 8 | 33.5 | 17 | 11 | 8 | 74 | 58 | 24 |
| 9 | 37 | 19 | 11 | 9 | 80 | 62 | 26 |
| 10 | 40.5 | 20 | 14 | 10 | 89 | 69 | 29 |
| 12 | 47.5 | 23.5 | 14 | 12 | 104.5 | 80.5 | 33 |
| 14 | 54.5 | 23.5 | 16 | 14 | 121 | 93 | 38.5 |
| 16 | 61.5 | 29 | 20 | 16 | 140 | 108 | 45 |
