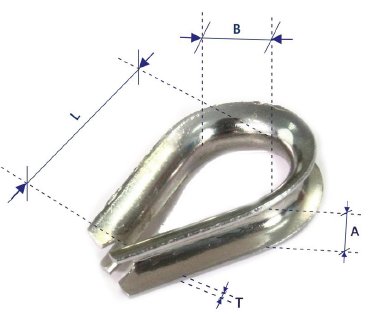

| SIZE(MM) | A(MM) | B(MM) | L(MM) | T(MM) | DIA. CABLE(MM) |
| 2 | 2 | 8 | 14 | 1 | 2 |
| 3 | 3 | 10 | 16 | 1 | 3 |
| 4 | 4 | 11 | 19 | 1 | 4 |
| 5 | 5.6 | 13.5 | 23.5 | 1 | 5 |
| 6 | 6.6 | 15 | 25 | 1.25 | 6 |
| 7 | 7.8 | 16 | 28 | 1.25 | 7 |
| 8 | 9 | 18 | 32 | 1.5 | 8 |
| 10 | 11 | 23 | 37 | 1.5 | 10 |
| 12 | 14 | 27 | 44 | 2 | 12 |
| 14 | 15 | 34 | 55 | 2.5 | 14 |
| 16 | 17 | 35 | 63 | 2.5 | 16 |
| 18 | 19 | 40 | 69 | 3 | 18 |
| 20 | 22 | 46 | 76.5 | 4 | 20 |
