EYE BOLT,DIN444

Product Description:

INQUIRY NOW ADD TO CART

Product Details

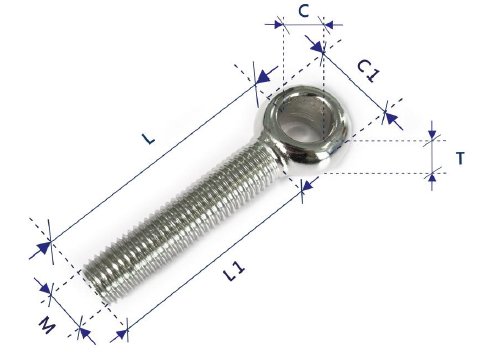

SIZE(MM)	C(MM)	C1(MM)	L(MM)	L1(MM)	M(THREAD)	T(MM)
5*30	5.2	12	30	20	M5	6
5*40	5.2	12	40	22	M5	6
5*50	5.2	12	50	30	M5	6
5*60	5.2	12	60	36	M5	6
6*25	6.2	14	25	15	M6	7
6*35	6.2	14	35	18	M6	7
6*40	6.2	14	40	22	M6	7
6*45	6.2	14	45	25	M6	7
6*50	6.2	14	50	30	M6	7
6*60	6.2	14	60	36	M6	7
6*70	6.2	14	70	42	M6	7
6*75	6.2	14	75	46	M6	7
6*80	6.2	14	80	50	M6	7
8*25	8.2	18	25	15	M8	9
8*30	8.2	18	30	15	M8	9
8*35	8.2	18	35	18	M8	9
8*40	8.2	18	40	22	M8	9
8*45	8.2	18	45	25	M8	9
8*50	8.2	18	50	28	M8	9
8*60	8.2	18	60	34	M8	9
8*65	8.2	18	65	38	M8	9
8*70	8.2	18	70	40	M8	9
8*75	8.2	18	75	45	M8	9
8*80	8.2	18	80	48	M8	9
8*100	8.2	18	100	60	M8	9
8*120	8.2	18	120	73	M8	9
10*40	10.2	20	40	20	M10	12
10*45	10.2	20	45	23	M10	12
10*50	10.2	20	50	29	M10	12
10*60	10.2	20	60	32	M10	12
10*65	10.2	20	65	35	M10	12
10*70	10.2	20	70	40	M10	12
10*75	10.2	20	75	43	M10	12
10*80	10.2	20	80	46	M10	12
10*90	10.2	20	90	53	M10	12
10*100	10.2	20	100	60	M10	12
12*50	12.2	25	50	25	M12	14
12*55	12.2	25	55	28	M12	14
12*60	12.2	25	60	32	M12	14
12*65	12.2	25	65	35	M12	14
12*70	12.2	25	70	38	M12	14
12*75	12.2	25	75	42	M12	14
12*80	12.2	25	80	45	M12	14
12*90	12.2	25	90	50	M12	14
12*100	12.2	25	100	58	M12	14
12*110	12.2	25	110	65	M12	14
12*120	12.2	25	120	72	M12	14
12*130	12.2	25	130	78	M12	14
12*140	12.2	25	140	85	M12	14
12*150	12.2	25	150	92	M12	14
12*160	12.2	25	160	95	M12	14
16*60	16.2	32	60	30	M16	17
16*70	16.2	32	70	35	M16	17
16*80	16.2	32	80	42	M16	17
16*90	16.2	32	90	49	M16	17
16*100	16.2	32	100	56	M16	17
16*110	16.2	32	110	62	M16	17
16*120	16.2	32	123	70	M16	17
16*130	16.2	32	130	75	M16	17
16*140	16.2	32	140	82	M16	17
16*150	16.2	32	150	90	M16	17
16*160	16.2	32	160	96	M16	17
20*70	18.2	40	70	30	M20	22
20*75	18.2	40	75	35	M20	22
20*80	18.2	40	80	40	M20	22
20*90	18.2	40	90	42	M20	22
20*100	18.2	40	100	53	M20	22
20*110	18.2	40	110	60	M20	22
20*120	18.2	40	120	66	M20	22
20*130	18.2	40	130	76	M20	22
20*140	18.2	40	140	80	M20	22
20*150	18.2	40	150	96	M20	22
20*160	18.2	40	160	93	M20	22
20*180	18.2	40	180	106	M20	22
20*200	18.2	40	200	120	M20	22
24*80	22.2	45	80	38	M24	26
24*90	22.2	45	90	42	M24	26
24*100	22.2	45	100	50	M24	26
24*110	22.2	45	110	54	M24	26
24*120	22.2	45	120	65	M24	26
24*130	22.2	45	130	70	M24	26
24*140	22.2	45	140	80	M24	26
24*150	22.2	45	150	85	M24	26
24*160	22.2	45	160	90	M24	26
24*180	22.2	45	180	105	M24	26
24*200	22.2	45	200	118	M24	26
